- Window SLIP™ Slim Line Insulating Pane
Upgrade Your Original Single-Pane Window to Double-Pane-Level Performance with SLIP™.
Developed over 20 years from hands-on experience with historic window restoration, the Window SLIP is a low-profile insulating pane that mounts directly to either the interior or exterior of the existing sash.
Products Trusted By
How It Works
The slim line insulating pane installs directly onto your existing sash -- no removal, no reglazing, and no disruption to the original frame. In this short video, you can see the full process on an active historic building project, from measuring through final installation.
The result is a window that looks identical to the original from the street, performs like a modern double-pane unit, and meets the reversibility requirements that preservation boards and landmark registries require.
before

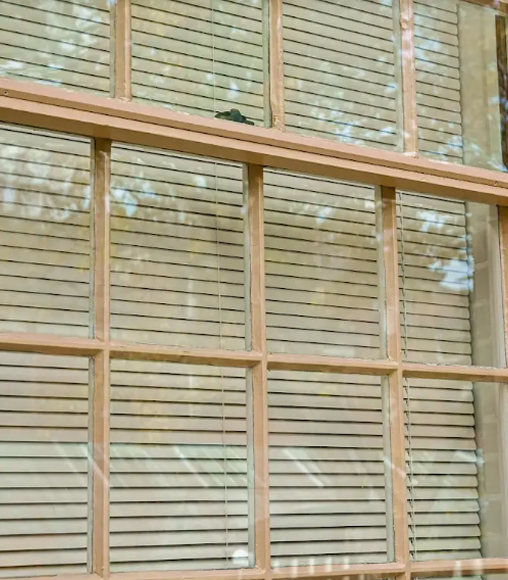

The SLIP is a Low Profile Addition to Existing Glass
after

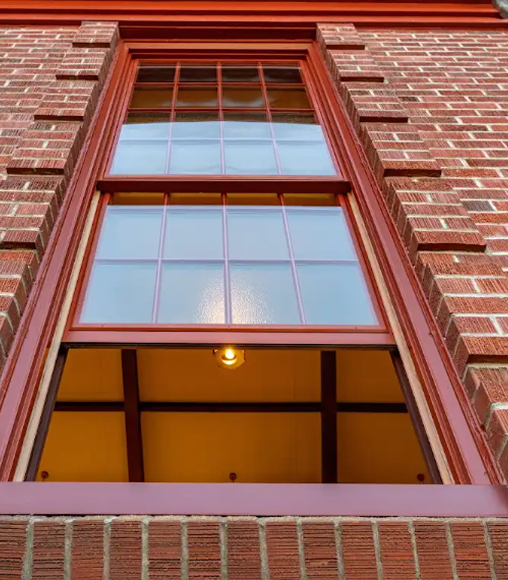

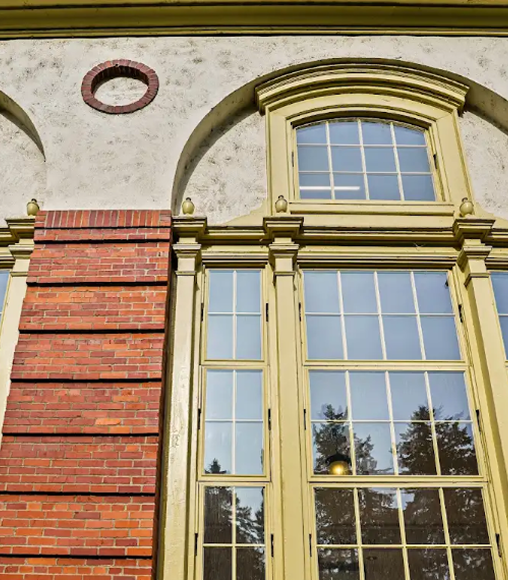

Original Sight Lines Remain the Same
What Is The Window SLIP™?
SLIP stands for Slim Line Insulating Pane. It is a sash-mounted secondary glazing system that converts single-pane windows into simulated double-pane windows without removing, altering or replacing the original sash or glass.

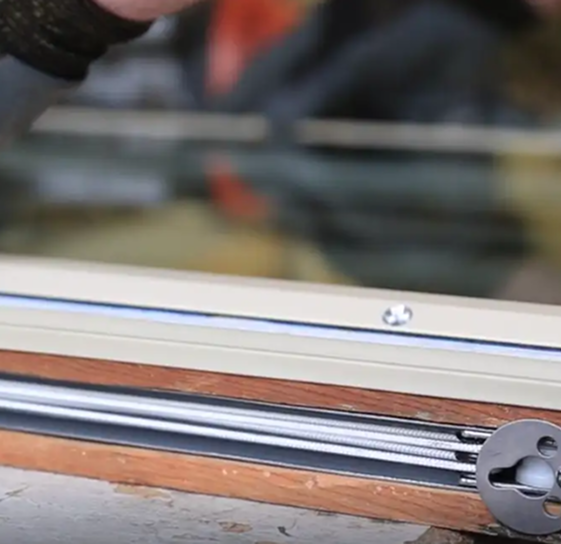

A tempered glass pane is added directly to each sash, overlaying the current glass configuration. The frame is a low-profile pressed metal extrusion, nearly invisible once installed. The result is the creation of an insulating air space that modernizes thermal performance while leaving the original window completely intact and fully operable.

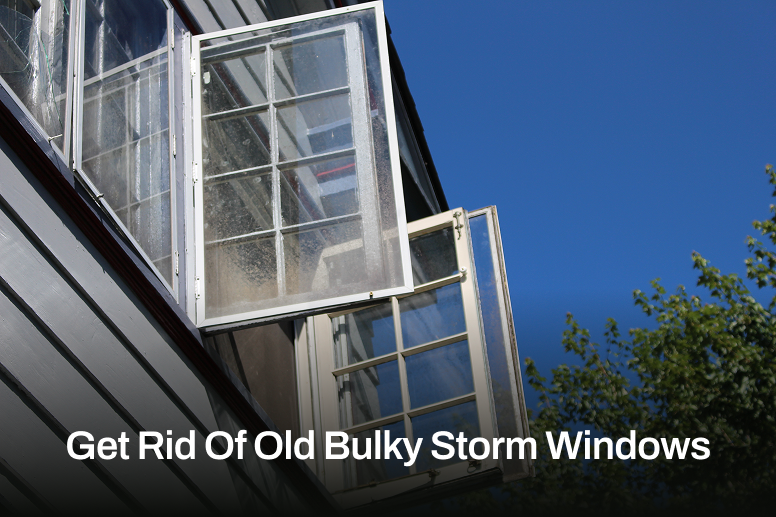

Unlike traditional storm windows, SLIPs do not require seasonal removal. Unlike insulated glass conversions, they do not require the original glazing to be removed or the window to be reglazed. It is a simpler, less invasive, and more cost-effective path to modern energy performance that does not compromise historic integrity.
- Why It Works for Historic Projects
Designed with Preservation in Mind
Heritage Compliance
SLIPs preserve original sash, muntins, glass, and profiles meeting the visual integrity and reversibility requirements of historic preservation boards, landmark registries, and comply with the Secretary of the Interior Standards for the Treatment of Historic Properties. The product can be installed on the interior or exterior of the sash and can be easily removed if required.
Energy Performance
University of Oregon Energy Studies in Buildings Laboratory testing demonstrated that SLIPs can reduce energy costs by up to 72.9% when installed on single-pane windows. Performance is comparable to insulated glass unit conversions at a fraction of the cost and disruption.
Cost-Effective Upgrade
For multi-lite configurations, insulating glass conversions require removing original glazing, routing new channels, and reglazing every lite individually. SLIPs simplify the process by providing equivalent insulation with a single overlying glass layer applied directly over the existing configuration with no alteration to the original window required.
- Performance Data
Tested and Verified Performance
SLIP performance has been evaluated through both independent laboratory simulation (Intertek) and real-world energy testing (University of Oregon).
Thermal Performance (Intertek Simulation):
- Whole-Window Performance Improved from ~0.31 → 0.26 U-Value
- Achieves Performance Levels Comparable to Modern Insulated Glass Units
Real-World Energy Impact (University of Oregon Study):
- Heating Energy Reduced from 454 → 123 Therms/Year
- Cooling Energy Reduced from 474 → 129 KWh/Year
- Up to 72.9% Reduction in Heating Energy Use
- Significant Reduction in Air Leakage (~111 → 68 CFM @ 50 Pa)
What This Means:
SLIP delivers a true whole-window performance upgrade—improving thermal resistance, reducing air infiltration, and lowering energy use—while preserving original historic windows and operability.
“The SLIPs were very close to the energy performance of the IGU option… We were able to save hundreds of historic windows and still met our stringent standards of energy performance that exceed Oregon state code.”
— George Bleekman, Owner’s Representative, Capital Design & Facilities Management, University of Oregon
- Specifications
Product Specifications
Window Compatibility
- Single-Hung, Double-Hung, Casement, and Picture Windows
- Interior or Exterior Installation
Glass Options
- 1/8" or 1/4" Tempered Glass
- Clear, Low-E, or Obscure Finish Options
Maintenance
- No Seasonal Removal Required
- Eliminates Seal Failure Risk Associated with IGUs
- Extremely Low Long-Term Maintenance Costs
- Easily Removable if Required
Frame
- Low-Profile Pressed Metal Extrusion
- Virtually Invisible Once Installed — No Loss in Outside Viewing Space
- Project References

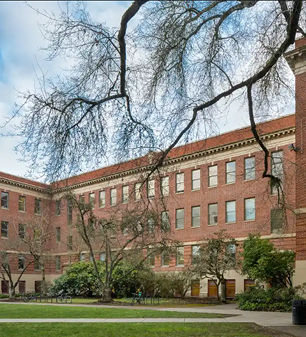

Installed on Major Institutional and Historic Projects
SLIPs have been specified and installed on buildings including:

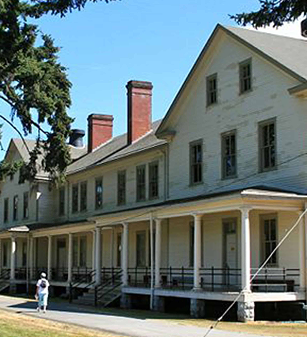

Fort Vancouver National
Historic Site

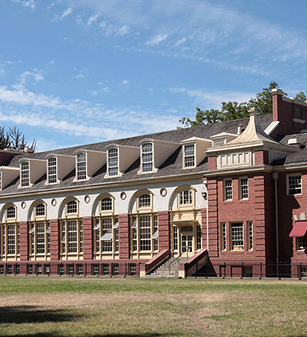

University of Oregon
Gerlinger Hall and Straub Hall
Oregon State University
Bexell Hall

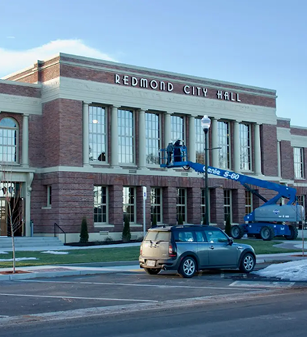

Redmond City Hall (DeMuro Award for Excellence in Preservation)
Peninsula Park Community Center
- How to Order
Fabricated to Your Measurements. Ready to Install.
SLIPs are custom-sized to the exact dimensions of your windows. We assemble, sell, and ship SLIP kits containing all materials required for a successful installation. Kits can be installed by contractors, carpenters, and other construction trades. Full installation instruction videos are available.
For projects in the Pacific Northwest, direct installation may be available through Chosen Wood Windows Maintenance for select commercial projects. Contact us to discuss your scope.
Ready to
Specify or Source?
Our team can work with your project requirements, architectural specifications, or preservation plan. Storm windows, replacement sash and SLIP kits are fabricated to order. Contact us to discuss your project.
Performance upgrades for vintage and historic windows don’t t have to mean compromise. Tell us about your project and we'll help you determine if SLIP is the right fit, whether you need pricing, spec language, or expert advice.
